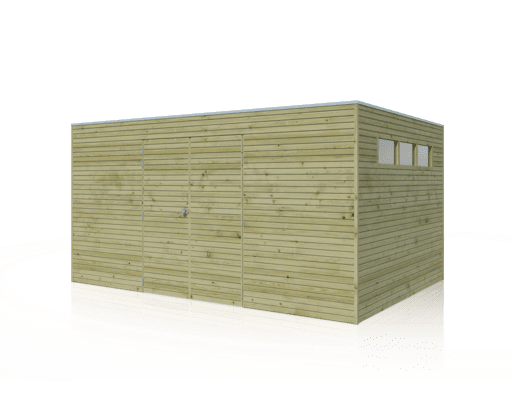

QB III 7203 garden house – 420 × 300 cm
The QB III 7203 is a garden house with a windproof timber corner joint and 28 mm spruce walls. Its ground and overall dimensions are 420 × 300 cm, giving an area of 12.6 m². The interior measures 414 × 294 cm and provides 12.17 m². The elongated plan can be divided into activity or storage zones, but the 147 cm-wide clear double-door opening and a continuous access route should remain unobstructed. Gardenas recommends a minimum concrete base of 420 × 300 cm.
Construction and roof
- Walls: 28 mm spruce
- Roof: OSB3 with EPDM roof covering
- Rainwater drainage: included down to ground level
- Sidewall / ridge height: 215 / 216 cm
- Roof pitch: 1°
- Surface to treat: 70 m²
Site selection must allow for the complete 420 cm length, 300 cm depth and a suitable route for the rainwater drainage. Use the 414 × 294 cm internal dimensions for storage or furniture planning so that items are not mistakenly sized against the exterior measurements.
Double door, window and access
- Door: DDQB1 QB double door, 2 × 75 × 189 cm
- Clear door opening: 147 × 188 cm
- Lock: stainless-steel ball latch with cylinder
- Window: HRQB3 for a 3 m-deep QB
- Glazing: 4 mm clear glass
- Clear window opening: 190 × 27 cm
The wide opening supports access planning for larger items, although their actual dimensions still need checking against the 147 × 188 cm clear opening. The package is 420 × 120 × 70 cm; the manufacturer lists a weight of 620 kg. Its length in particular requires a suitable delivery route, manoeuvring space, unloading point and level temporary storage area.
Weight, packing and floor options
- Weight: 620 kg
- Packing L × W × H: 420 × 120 × 70 cm
- Floor options: V7203 and V7203IMG
Manufacturer specifications and assembly documents are available on the Gardenas product page for 7203. For help planning this garden house, contact us.
Compare QB sizes
Compare these QB models for internal space and clear door opening: QB I 7201 — 300 × 210 cm · QB II 7202 — 300 × 300 cm.
